The DataForge ecosystem follows the data flow from raw data to organized data warehouse.
The Logical Data Flow

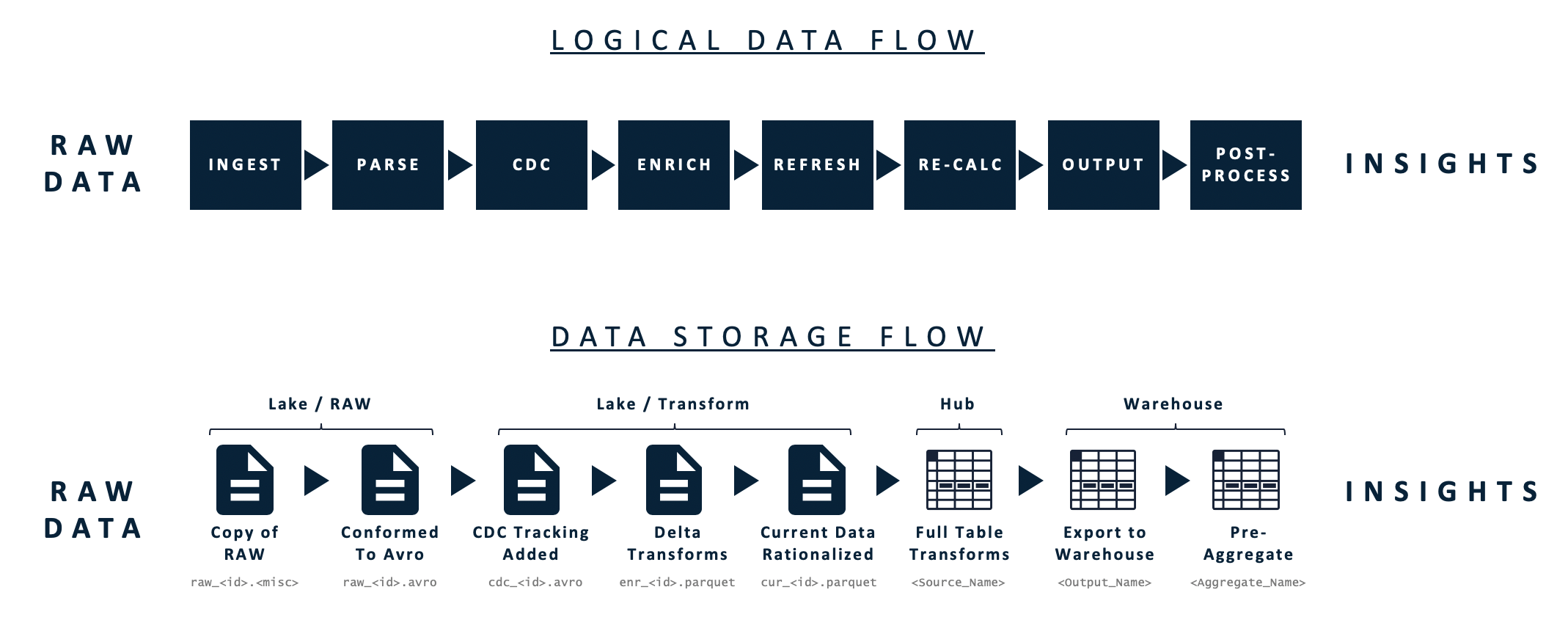

The DataForge Data Flow and corresponding storage locations
As seen in the above data flow diagram, DataForge intakes raw data and outputs an organized data warehouse. The Logical Data Flow consists of eight steps: Ingest, Parse, CDC, Enrich, Refresh, Attribute Recalculation, Output, and Post-Output. The Data Storage Flow consists of four main structures: Raw Data, Data Lake, Data Hub, and Data Warehouse. Though not shown in the diagram, each step in each flow consists of generated and configuration metadata to aid the user in process management and configurations respectively.
To illustrate this introductory overview of the logical data flow we will focus in on the four data structures (Lake/Raw, Lake/Transform, Data Hub, Data Warehouse) and a selection of key steps.
DataForge Data Lake / Raw
DataForge does not generate data. DataForge relies on external raw data sources, and DataForge supports many types of data sources such as flat CSV Files, databases or data warehouses. This raw data exists somewhere and the first step of the logical data flow (ingest) relies on appropriately copying this raw data to the Raw area of the Data Lake.
External Data Sources - ERP, CRM, HR, FIN, etc.DataForge does not generate or store business data, rather it collects this information from various External Data Sources. The nature of these sources can vary, and DataForge has existing modules built for the most common data stores used by enterprise organizations.
Ingest
Ingest is the first step of the logical data flow and is the process by which data enters DataForge. The ingest and parse steps appropriately copy raw data and convert this raw data into workable formats. The ingest process is facilitated by the Connections and Sources screens in the DataForge interface.
DataForge Data Lake / Transform
DataForge imports the appropriately transformed raw data from source systems into an indexed Data Lake, which utilizes Amazon's S3 or Microsoft Azure's Data Lake Gen2 file storage technology. As DataForge imports the data into the Data Lake, it identifies and stores information such as source database, original file location, and location in the Data Lake within the metadata structure, resulting in a self-managing Data Lake, useful for data scientists to access the raw information gathered on a scheduled basis.
Enrichment
Enrichment (Enrich) is the step of the logical data flow that applies data quality checks and executes business logic. This happens within the Data Hub, where user-specified configuration rules drive transformations and processing in several automated steps. The Enrichment rules represent the majority of the logic and structure of data processing within DataForge, and provide a flexible, yet guided framework for data management. The Refresh and Recalculate steps are also tightly coupled to this process, as those steps involve ensuring that historical data that needs to have their enriched fields kept current will be updated.
The Enrichment step is facilitated by the Enrichment tab within the Source screen in the DataForge interface.
Enrichments ExecutionDataForge supports many types of enrichments, and not all types of business logic can be executed at the same time. Based on the type of enrichment, calculation, or aggregation the enrichment will execute at a different, appropriate time in the logical data flow or data processing actions. DataForge interface keeps the details of these executions behind the scenes and user friendly.
DataForge Data Hub
The Data Hub consists of a Hive table optimized to process and store data for DataForge. As data moves through processing steps, DataForge automatically and continuously modifies the underlying table structures to ensure optimal performance.
Output
The Output step of the logical data flow and maps transformed data from the Data Hub to a Data Warehouse or 3rd party. Output typically consists of very limited transformation logic, instead focusing on simple mappings of data fields from the Data Hub to the final location.
The Output step is facilitated by the connections and outputs screens in the DataForge interface.
DataForge-Managed Data Warehouse
The Data Warehouse data structure is the final of the data structures in the DataForge data processes. The Data Warehouse focuses on optimized access for BI tools and analytics. DataForge supports most column-oriented storage technologies, such as SQL Server, Snowflake, Parquet, etc. and can fully manage the table structures, data models, and maintenance operations within the Warehouse. DataForge can also output data into a manually managed, existing data warehouse if needed.
Post-Process
The Post-Process step of the logical data flow runs any aggregations or calculations that need to cut across multiple sources. This step is intended for pre-aggregating data when needed for performance reasons for reporting consumption.
DataForge Metadata Structure
DataForge uses a Metadata Structure to manage information about configuration, process tracking, and data tracking throughout the entire platform. DataForge utilizes a proprietary table structure to relate all these data points, and stores this information in a Postgres database for easy access.
