Custom processing steps (Custom Ingestion, Custom Parse, Custom Post-Output) require user to select cluster configuration for each custom step. This custom cluster configuration defines cluster and job parameters and specifies the custom Databricks notebook that will be executed.

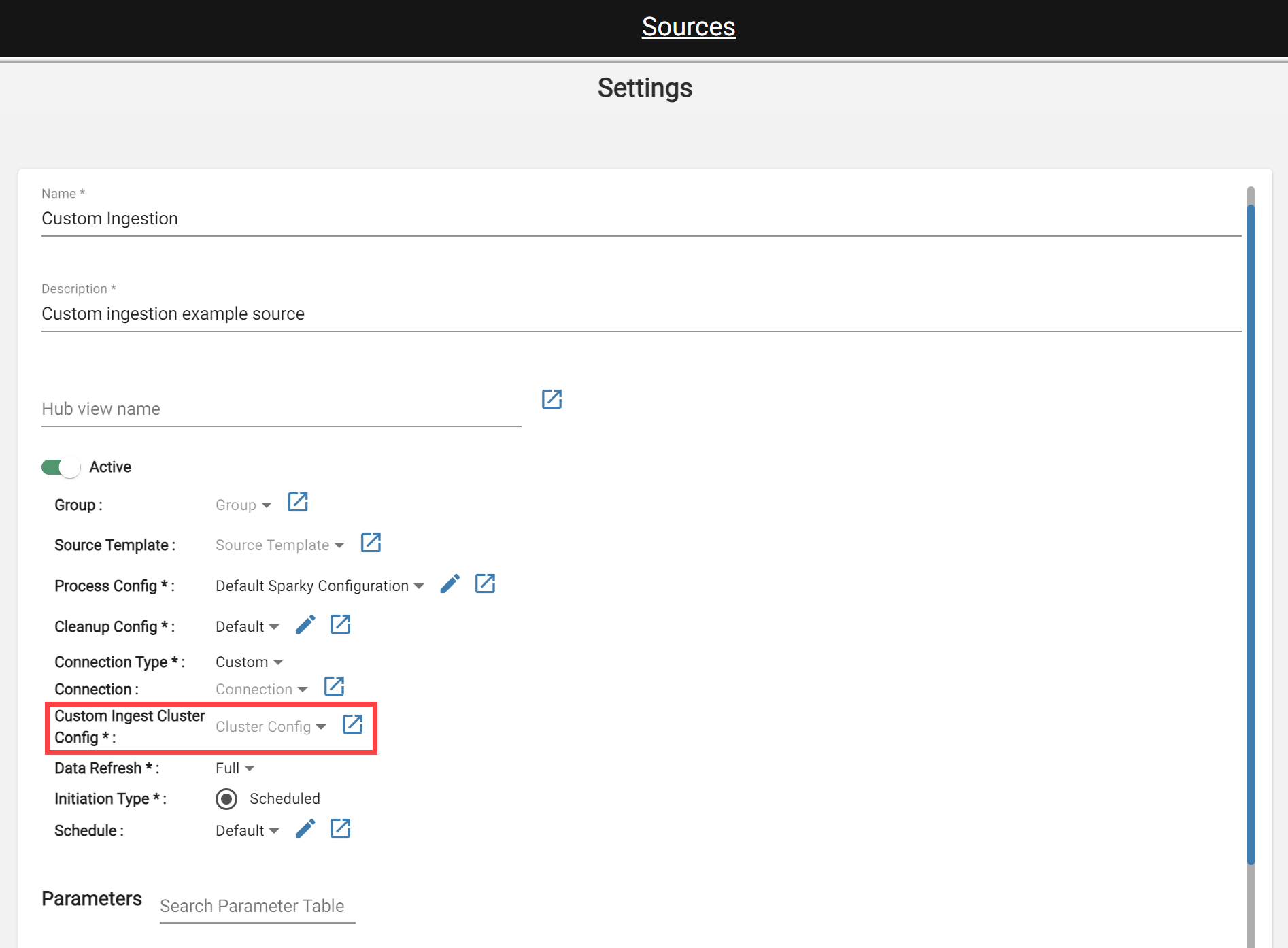

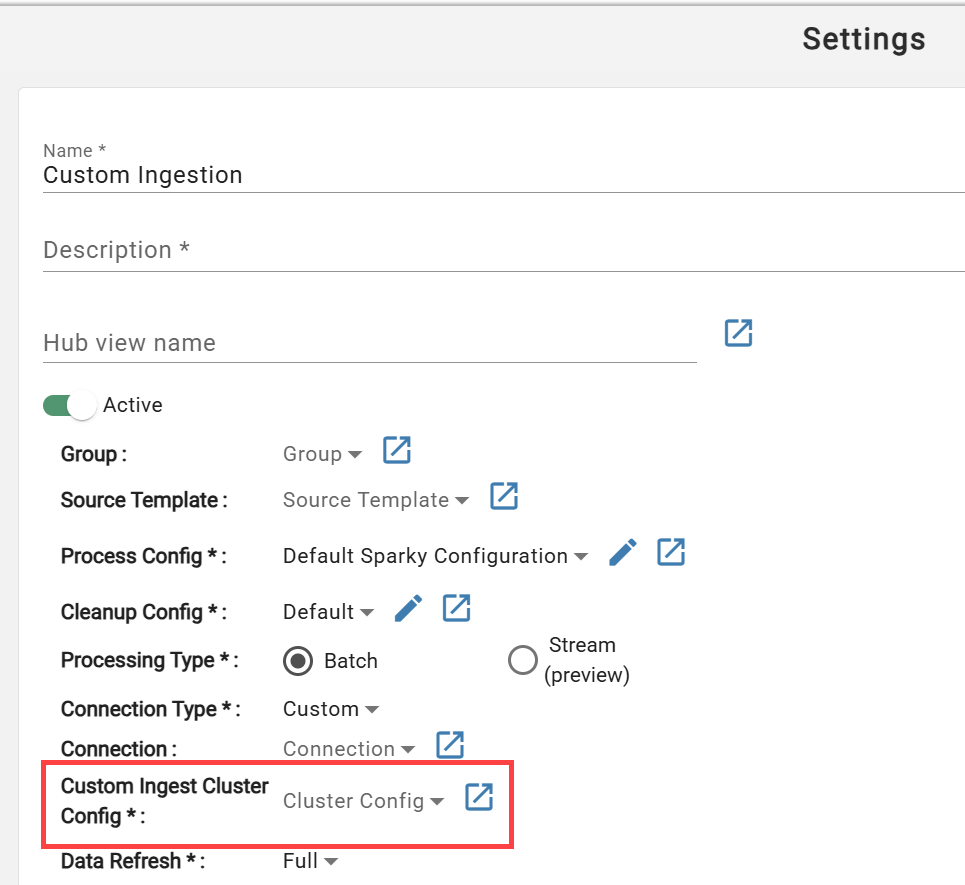

Configure Cluster for Custom Ingestion Source
Sources configured to use Custom Ingestion (Custom connection type) on the Source Settings page require user to select Cluster Configuration for the Custom Ingestion step:
After the Custom connection type is selected, a Custom Ingest Cluster Config dropdown will appear. Simply click on the dropdown to select an existing cluster configuration for that source.
Users can also create a new cluster configuration by click on the open in new icon. This will open a separate tab to a new cluster configuration. After creating the new cluster, users have the option to refresh the cluster list on the Source Settings page. Refreshing the list will show their newly created cluster configuration
Users may also edit an existing cluster by selecting a cluster configuration from the dropdown and then clicking the edit icon. This will open a new tab to the existing cluster. After edits are saved, users are once again prompted to refresh the cluster list.

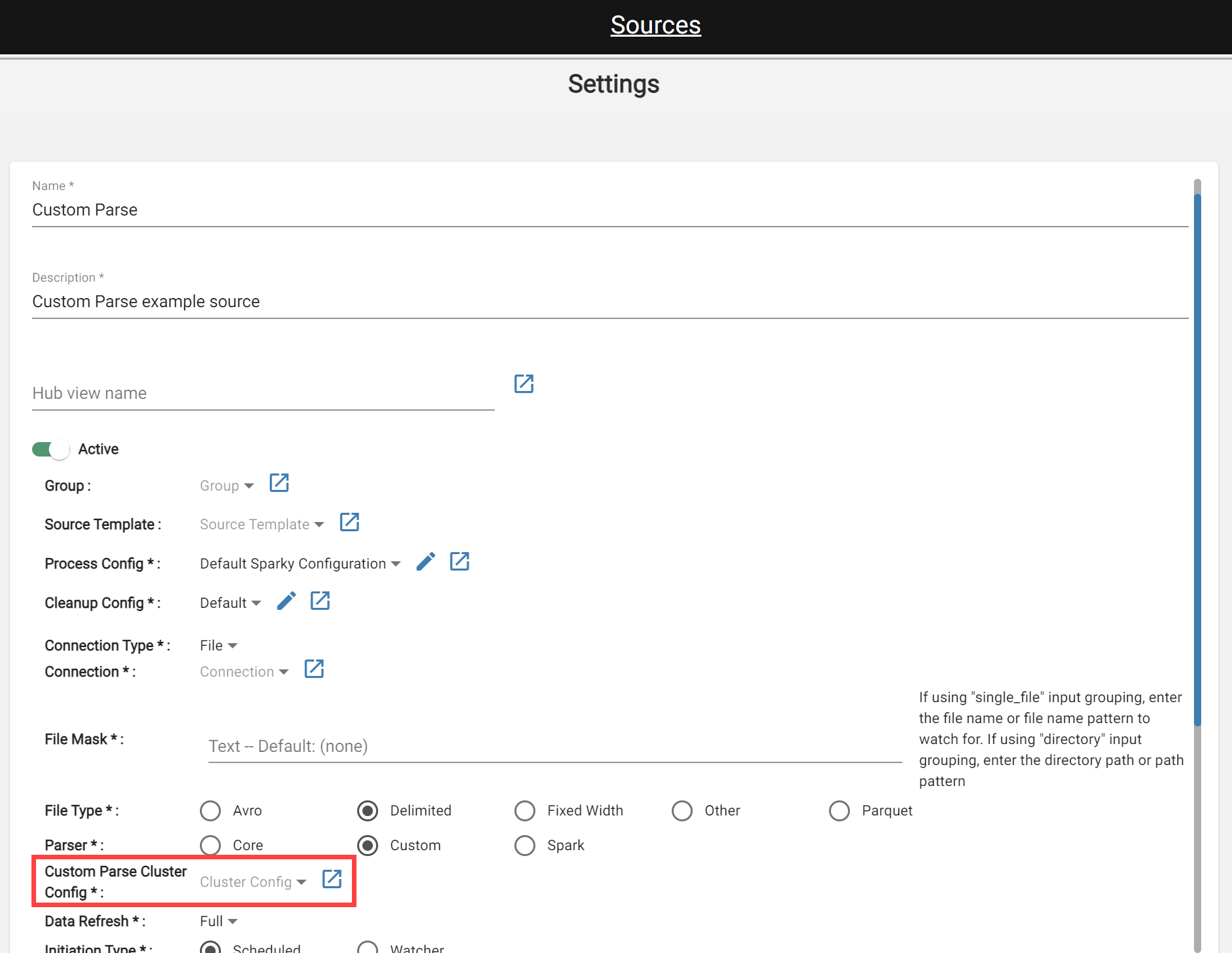

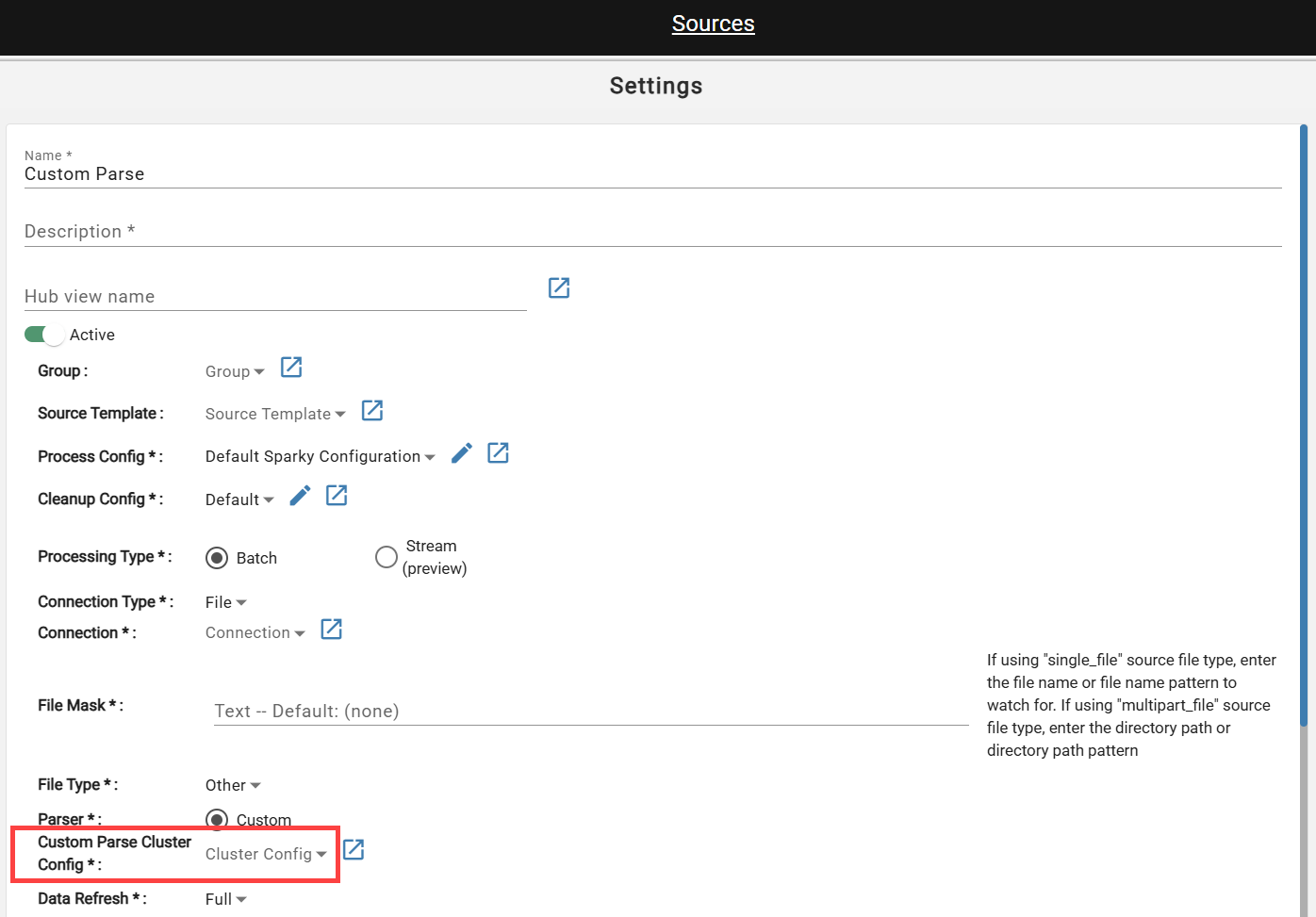

Configure Cluster for Custom Parse Source
Sources configured to use Custom Parse on the Source Settings page require user to select a Custom Parse Cluster Config for the Custom Parse step:

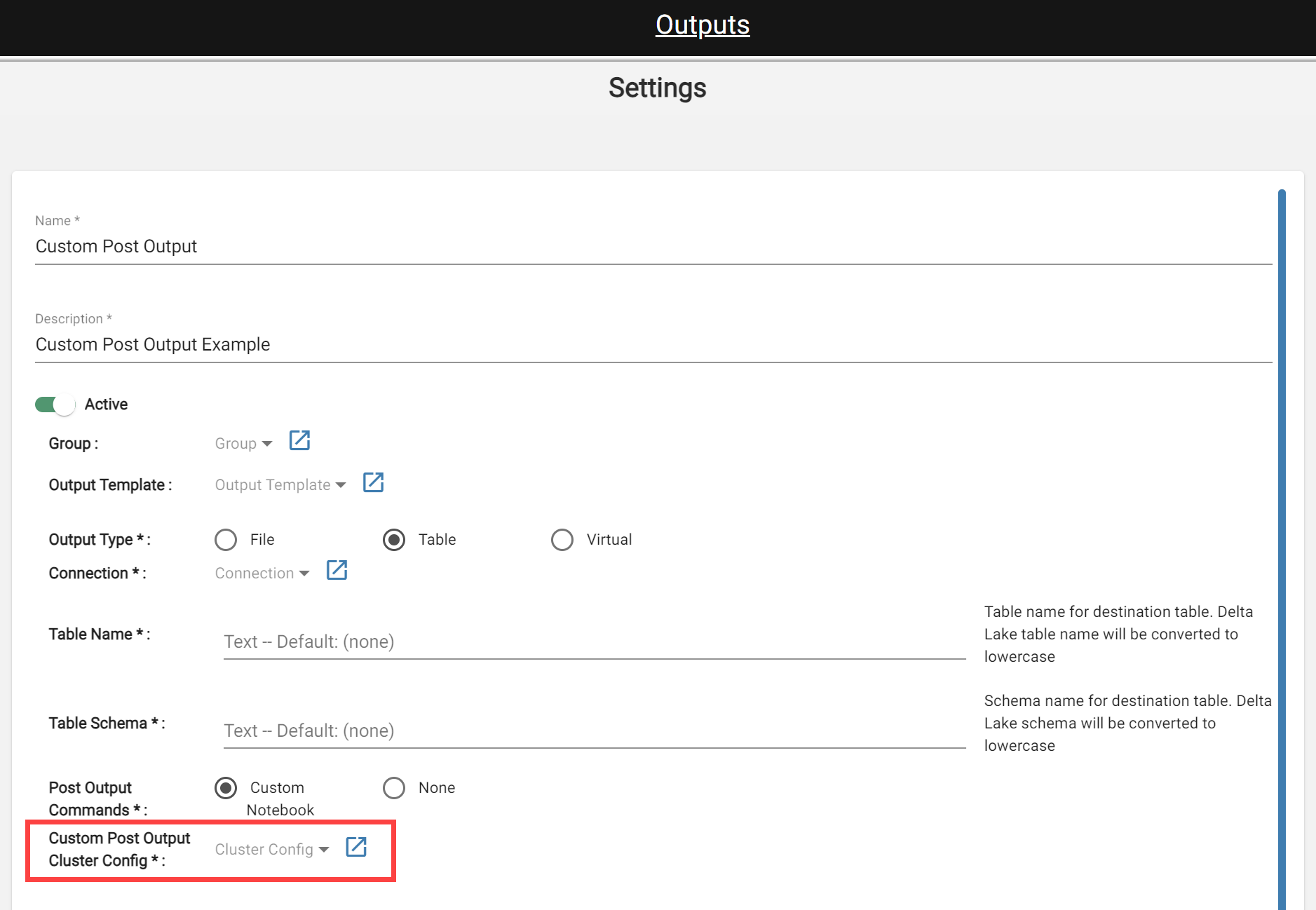

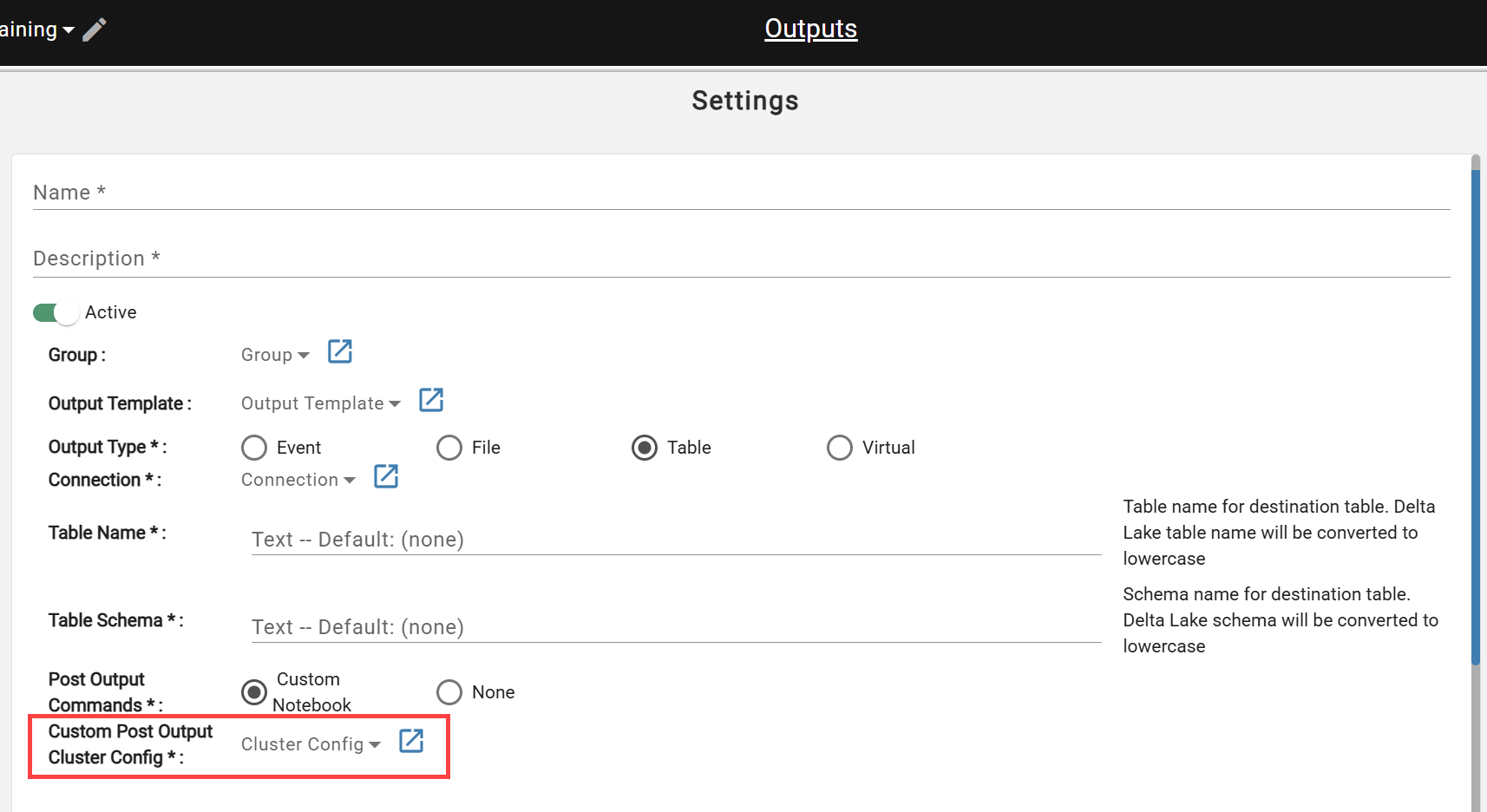

Configure Cluster for Custom Post-Output
Sources configured to use Custom Post Output on the Output Settings page require user to select a Custom Post Output Cluster Configuration for the Custom Post Output step:
