6.0 Release Upgrade / End of Support for Databricks 7.3 LTS

DataForge 6.0 Release and Upgrade Process

The DataForge team is proud to release the 6.0 major version upgrade.  In order to upgrade to 6.0.0, you must first have your environment upgraded to 5.2.0 to make the jump to 6.0.

NOTE: The imageVersion variable in Terraform needs to be set to 6.0.2 to get the latest patched version of 6.0.

Examples:

Current Environment 2.5.0 -> 5.1.0 -> 5.2.0 -> 6.0.2

Current Environment 5.1.6 -> 5.2.0 -> 6.0.2

AWS: An AppStream 2.0 stack has been added to replace Query Editor in RDS. If AppStream 2.0 has never been accessed in the AWS account before, go to the AppStream 2.0 console and click "Get Started" before running the Terraform apply. This will create Amazon service roles for AppStream in the account which will be necessary for the apply to run successfully.

For the 6.0 major upgrade, follow the same upgrade process that has been done for previous major/minor releases (links to guides below).  After completing the upgrade, continue with the manual steps below to update any custom Clusters and Cluster Pools to 9.1 LTS as well as update the Meta Monitor table to Postgres 14.

NOTE: If you are running DataForge in Azure, the last step will be to open each cluster configuration in your DataForge environment and resave the cluster as is.

AWS - New Version Upgrade Process

Azure - New Version Upgrade Process

End to End Process Overview:

1. Follow upgrade process steps in links above
2. Manually update Spark Version in DataForge Custom Cluster Configurations
3. Manually update Instance Pool ID in DataForge Cluster Configurations with Custom Pool
4. (Azure only) Resave each Cluster Configuration in DataForge one time
5. Create New Databricks notebook to Update Meta Monitor Table to PG 14

Known Deployment Issues

In Azure environments, the Azure Active Directory Terraform provider was upgraded and may no longer work with the deprecated Microsoft Graph API's on the App Registration used to authenticate Terraform with the Azure Subscription.

Example error: ApplicationsClient.BaseClient.Get(): unexpected status 403 with OData error: Authorization_RequestDenied: Insufficient privileges to complete the operation

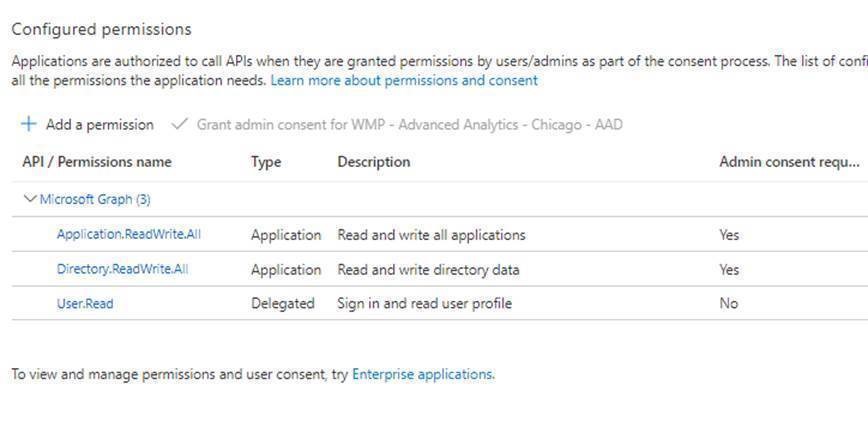

If this error is shown in the Terraform plan, please go to the App Registration and add the following Graph API permissions.

Databricks Runtime Version Change

As you may have seen, Databricks is ending support for 7.3 LTS run time.  In order to avoid production issues, we are adding support for 9.1 LTS as part of the DataForge 6.0 version release.

In addition to following the normal upgrade process (AWS or Azure), you will need to take manual steps to change any custom Cluster Configurations and Pools from 7.3 LTS to 9.1 LTS.  These manual changes need to be made directly after doing the upgrade to avoid job failures. Default configs/pools will auto-upgrade to 9.1 LTS as part of the 6.0 deployment.

Keep in mind that any jobs running with 7.3 LTS in a 6.0 DataForge environment will fail and inversely any jobs running with 9.1 LTS in a <6.0 DataForge environment will fail.  We've included the below matrix to help illustrate this point.

Note: Any cluster config running 7.3 or using a 7.3 pool will have its name updated when deploying 6.0 to make it easy to find.  The name will look similar to below.

CHECK INSTANCE POOL DATABRICKS VERSION: OrigName
CHECK DATABRICKS VERSION: OrigName

Updating Custom Cluster Configurations in DataForge

Open your DataForge environment and navigate to the Cluster Configurations.  After opening a cluster configuration that needs to be updated, navigate to the Parameters -> Cluster Configuration setting and change the Spark Version drop-down to 9.1.  Below are screenshot examples of before and after the change.  Once you are finished, save the change and move on to the next cluster configuration.

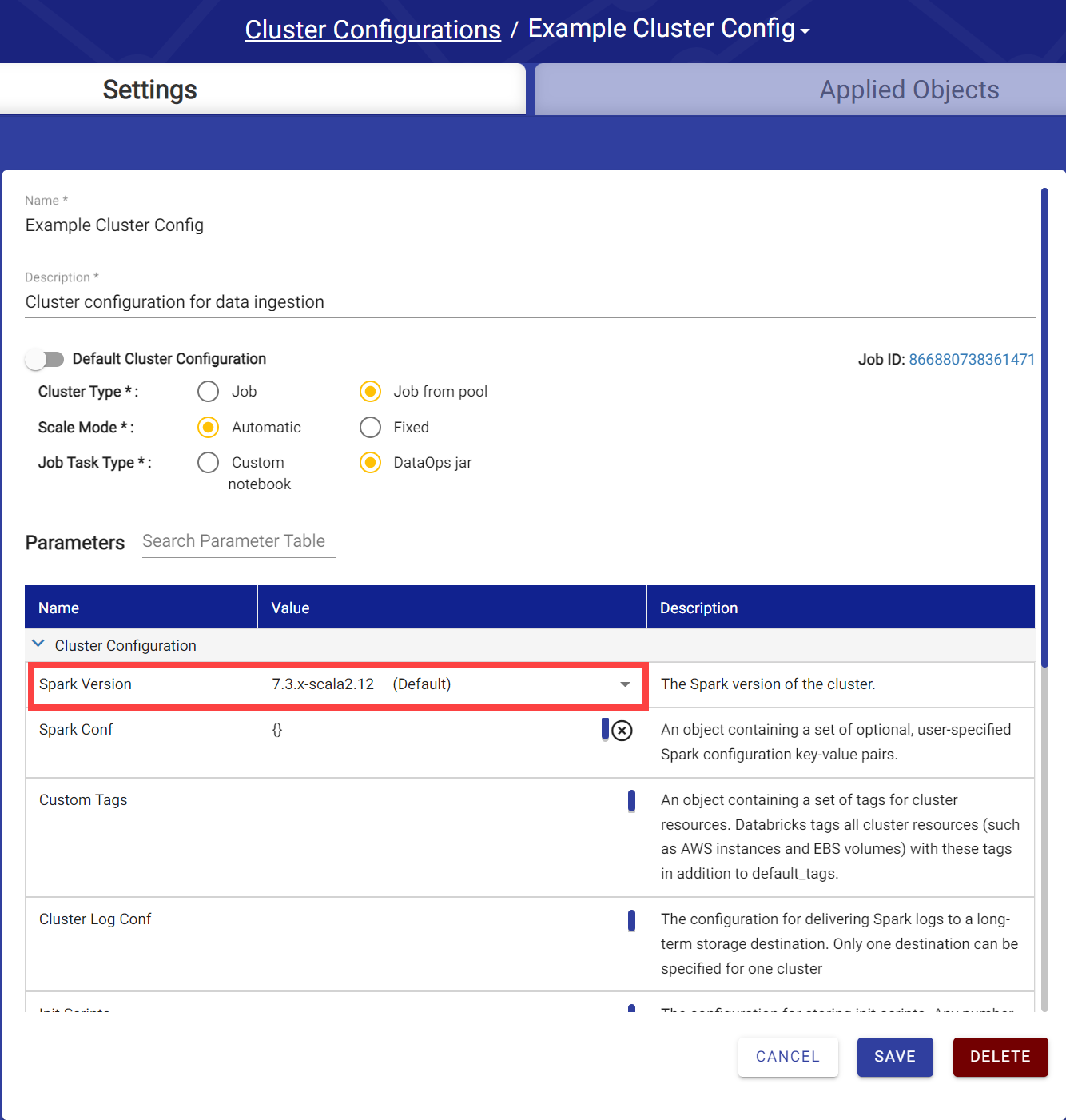

Before

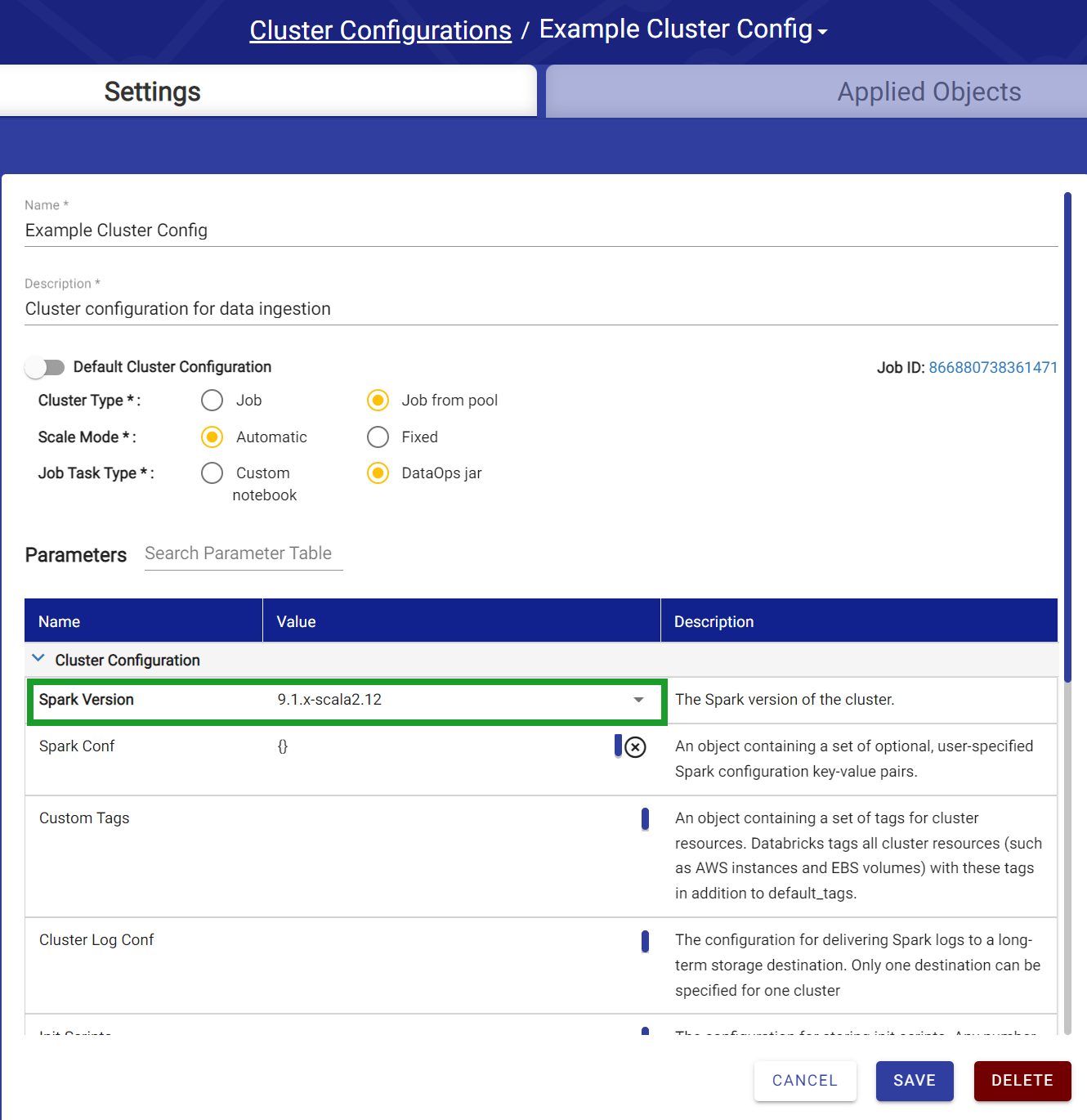

After

Updating Cluster Pools in Databricks and Attaching in DataForge

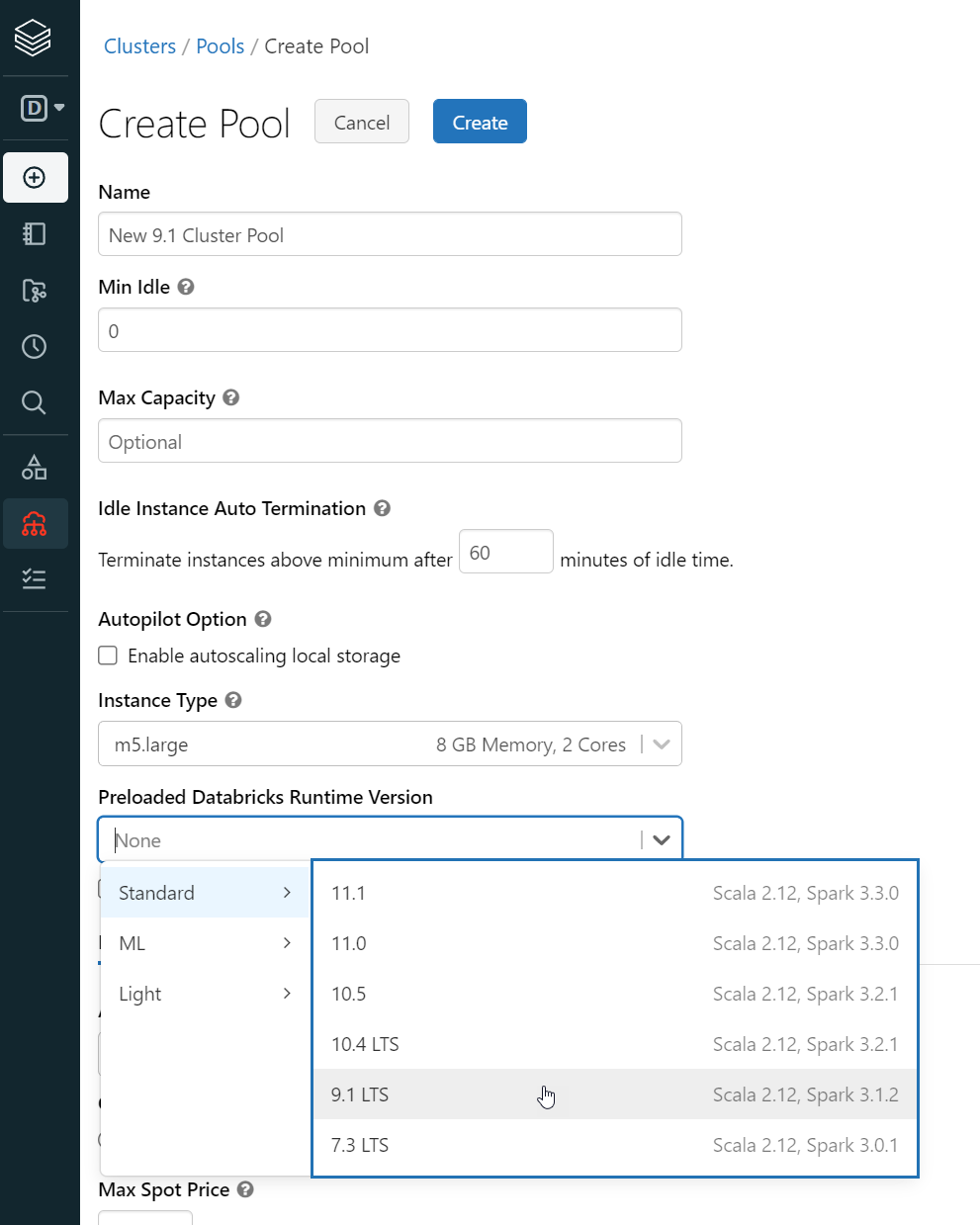

Unfortunately there is no way to update the Cluster Pool Version on an existing Pool in Databricks at this time so you will need to create a new Pool and re-associate your cluster configurations with this pool. Below is a screenshot of where to set the Runtime version in Databricks to 9.1 LTS when you make a new Pool.

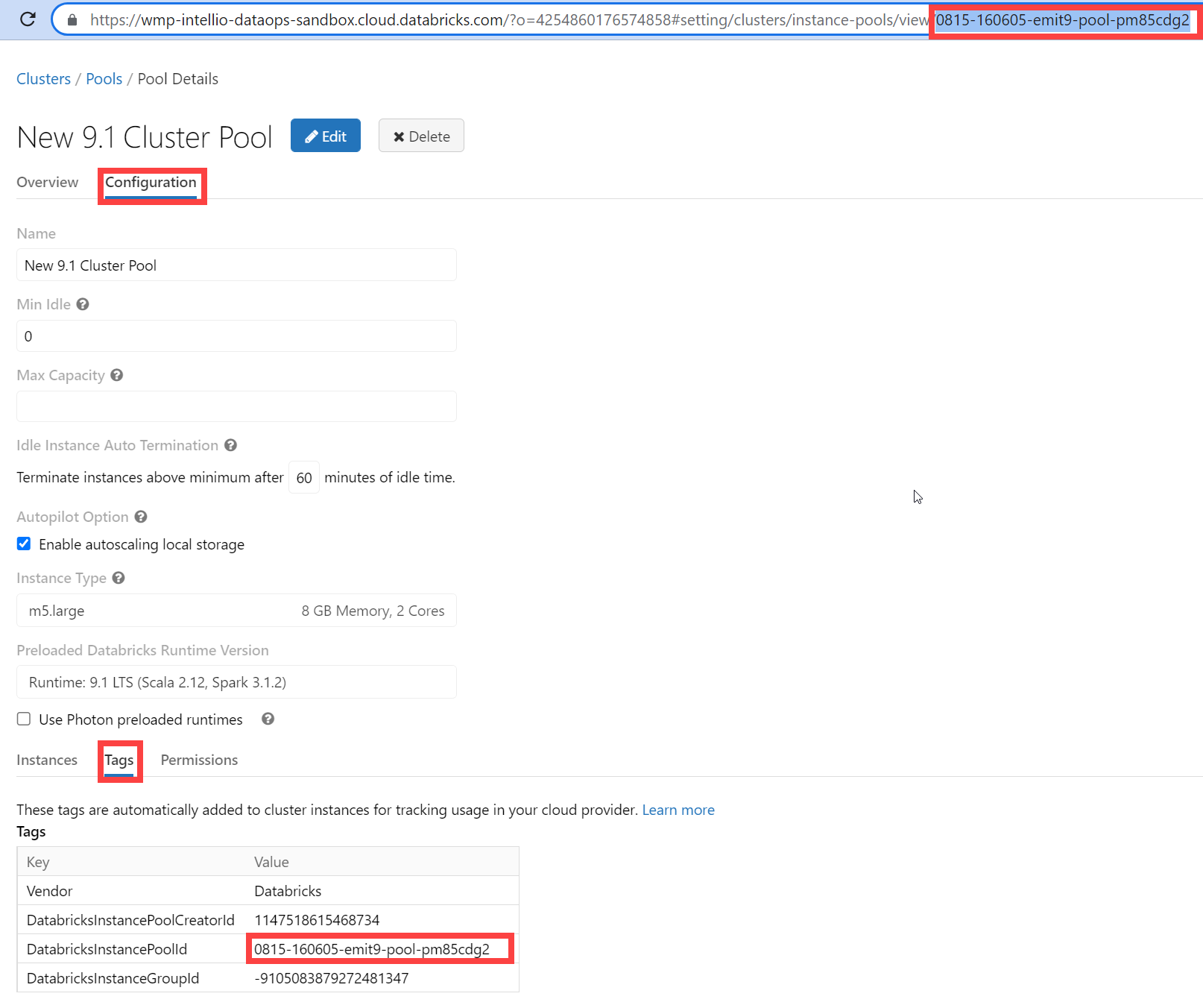

After creating the new Pool, you will want to copy the instance pool id from the URL and add this to any Cluster Configurations in DataForge still using the old pool. The instance pool id will be the last portion of the URL when you have the Pool opened in Databricks as shown below.

Optionally, you can also find this pool id by opening the pool, navigate to Configuration tab and select the Tags option below to see the DatabricksInstancePoolId value.

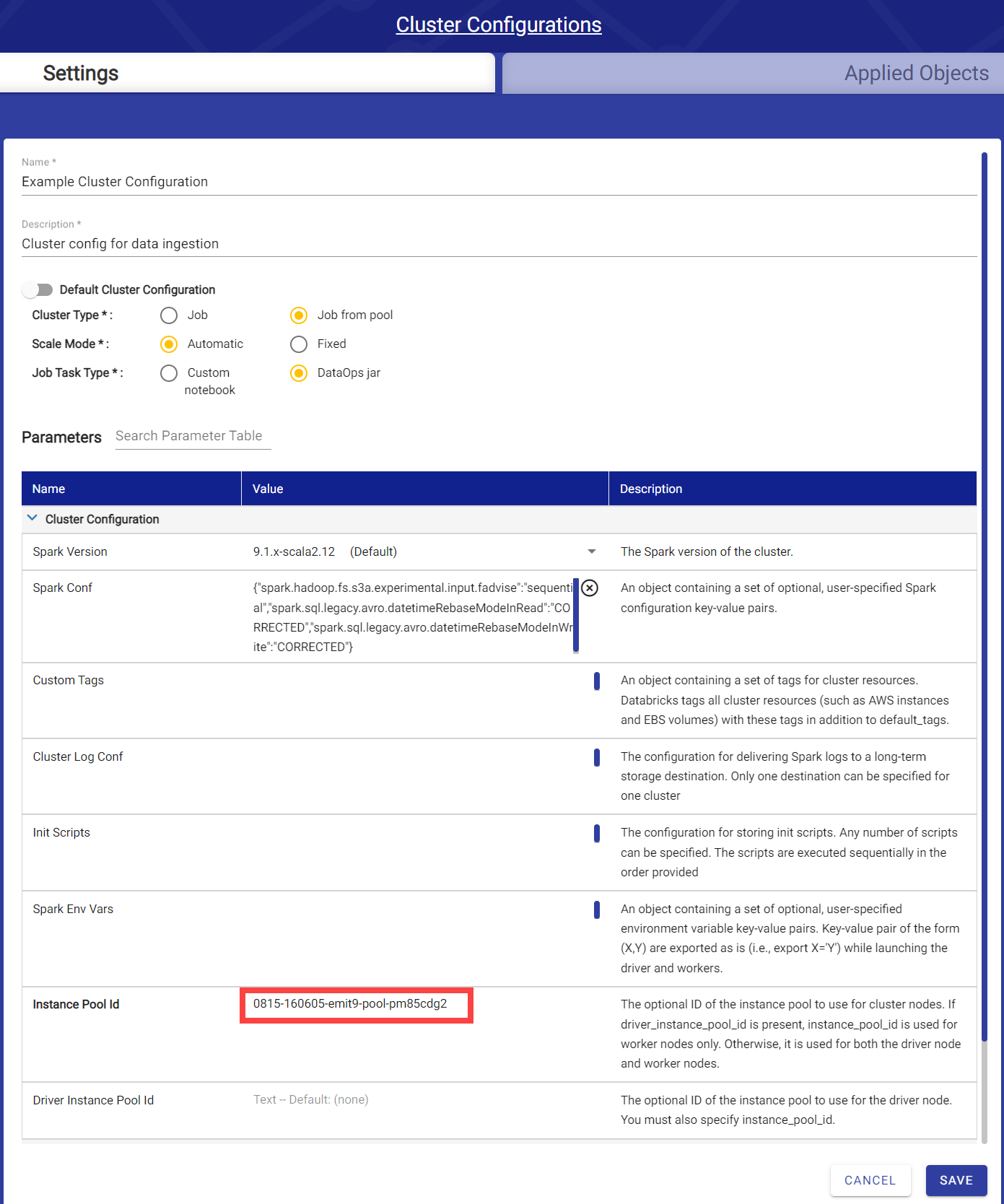

Return to your DataForge environment and navigate the menu to System Configuration -> Cluster Configurations and open the cluster configuration that needs to be updated.  In the Parameters -> Cluster Configuration, you will paste the new pool id in to the free-form text field "Instance Pool ID" and save your change.  Repeat this step for each cluster configuration that needs updating to the new pool.

As a reminder, if you are running DataForge in an Azure environment, please be sure to open and save each of your Cluster Configurations (Menu -> System Configuration -> Cluster Configurations) again as the last step in the deployment.

Update Meta Monitor Table to PG 14

Open Databricks and create a new Notebook.  In the notebook cell contents, paste the following code and then run the cell.

val pgConnectionStringRead = dbutils.secrets.get("sparky", "pg_read")
val pgQuery = spark.read.format("jdbc")
.option("url",pgConnectionStringRead)
.option("query", "select value from meta.system_configuration where name='meta-monitor-refresh-query'")
.load().head.getString(0)


spark.sql("DROP TABLE IF EXISTS meta.pg_process")
spark.sql("DROP TABLE IF EXISTS meta.pg_input")
spark.sql("DROP TABLE IF EXISTS meta.pg_source")

spark.sql(s"""CREATE TABLE IF NOT EXISTS meta.pg_process USING JDBC OPTIONS (url "$pgConnectionStringRead",dbtable "($pgQuery) pr")""")
spark.sql(s"""CREATE TABLE IF NOT EXISTS meta.pg_input USING JDBC OPTIONS (url "$pgConnectionStringRead",dbtable "meta.input")""")
spark.sql(s"""CREATE TABLE IF NOT EXISTS meta.pg_source USING JDBC OPTIONS (url "$pgConnectionStringRead",dbtable "meta.source")""")

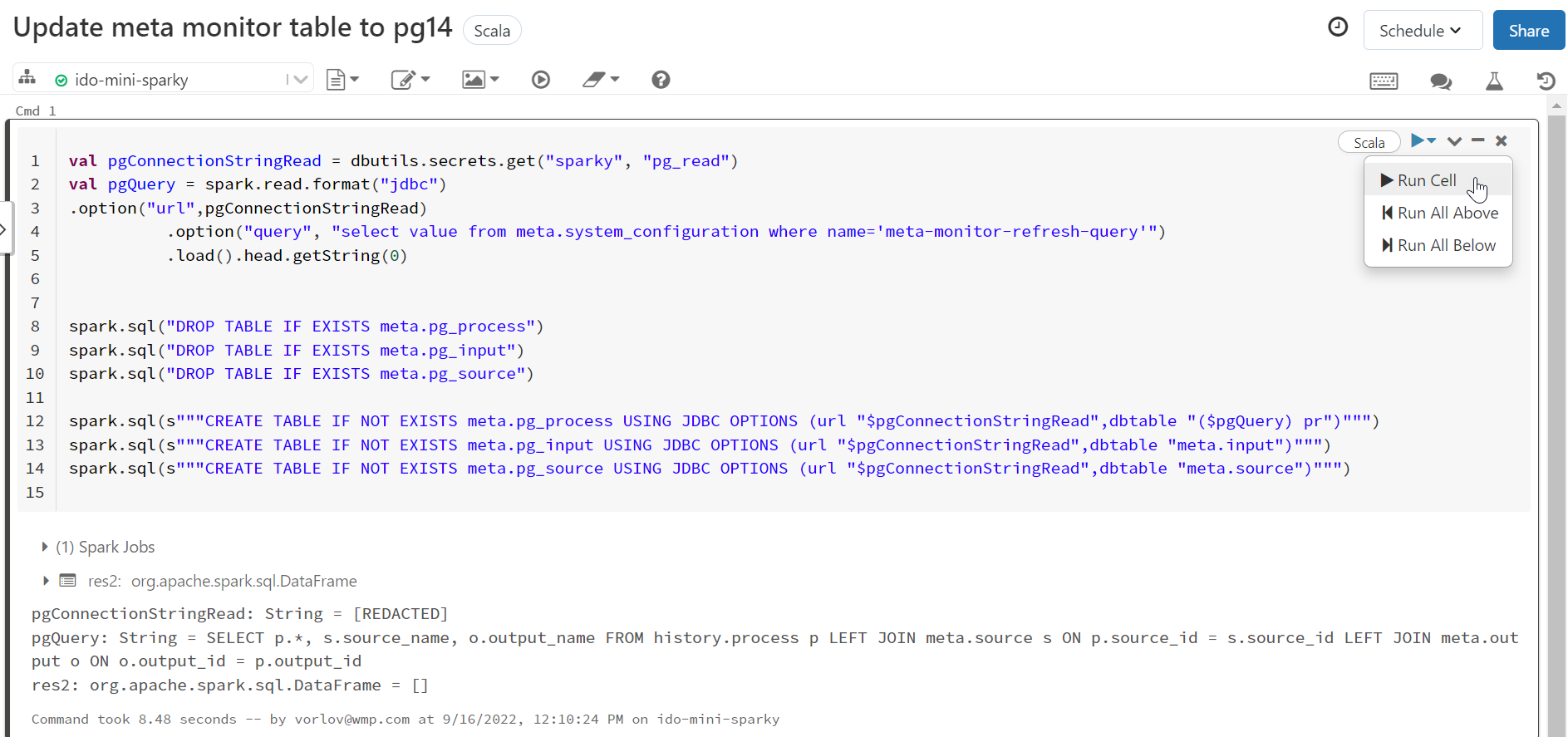

Below is a screenshot of what it will look like:

Rollback to 5.2.0

The provider upgrades in the 6.0.0 Terraform code for both AWS and Azure do not allow us to go back to the 5.2.0 Terraform code, so the infrastructure will not be able to be rolled back. The 5.2.0 codebase does work on the 6.0.0 infrastructure, so the following steps will need to be done to rollback an environment to run on 5.2.0 again.

Note: On-premise Agents that have already updated to 6.0.0 will not be able to revert back to 5.2.0.

Stop API, Agent, Core containers so no processes can run
